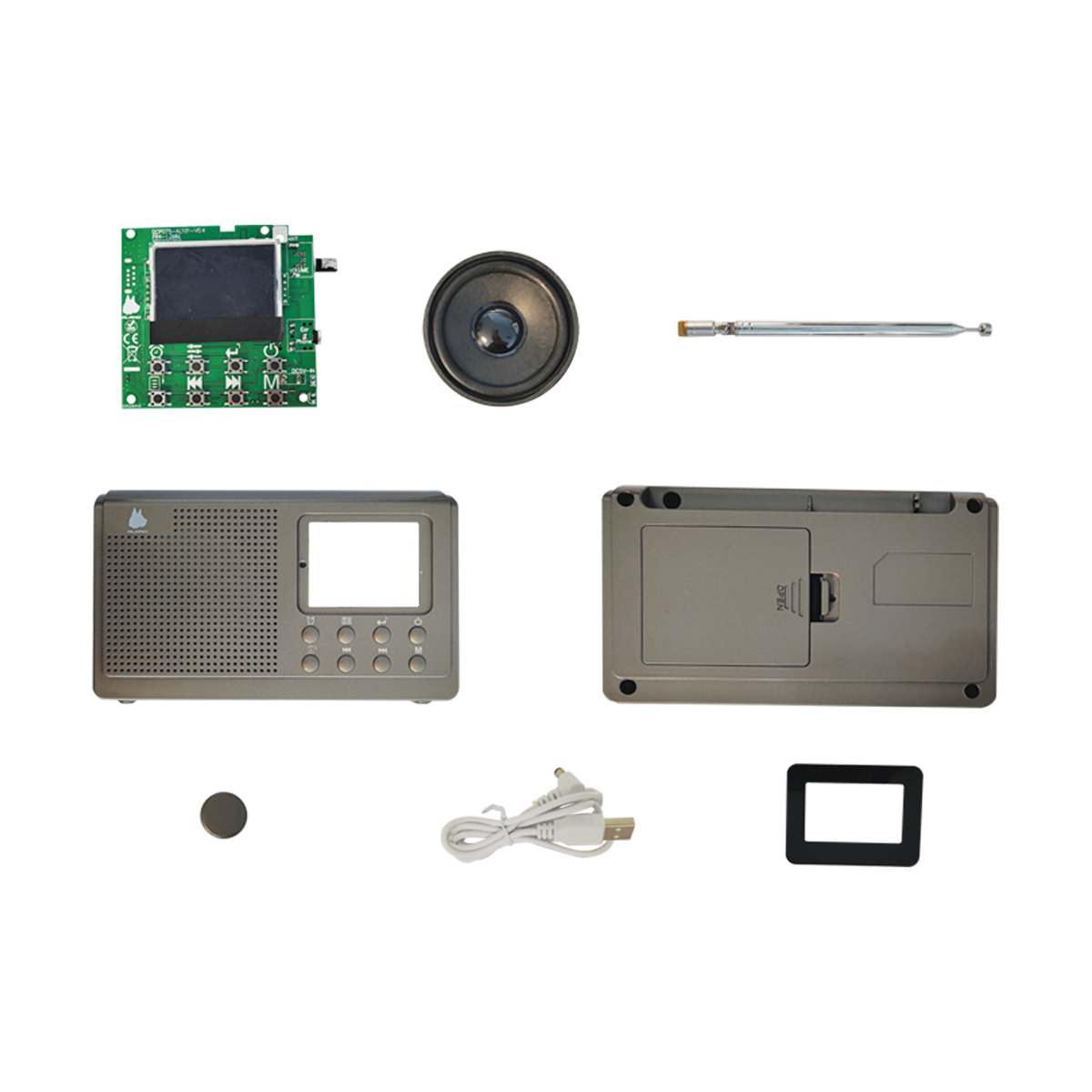

ALK101-104 FM/DAB+ radio Do It Yourself (DIY) kits, DIY DAB+/FM Sets with alarm mode & LCD Display

Features
1. Power supply
INPUT: 100-240V AC 50/60Hz 0.2A  OUTPUT: DC 5V/1.0A 5W
2. FM frequency: 87.5MHz-108MHz
3. DAB+ frequency: 174MHz - 240MHz
4. Line out: 3.5mm Jack
5. DAB+ wireless receiving sensitivity: -40dBm±2dBm
6. Amplifier output power: 3W
7. DC JACK: 5V/1A 5W

PCB size: 81mm*76.5mm
Product dimension(L*W*T)(mm):
approx.159mm*85mm*40mm
Product weight (kg): approx.330g
Packing box size: 20*14*8cm
Package weight: 500g
Master carton: 43*43*31cm

ALK101-104....pdf
