FM / DAB module - DB012

Function introduction 1. Db012r board contains (power interface, speaker socket and 3.5mm headphone port)

2. FM / DAB radio can be received

Product parameters Input voltage: 2.8-5v FM:87.5-108MHZ DABDAB+:168-240MHZ DAB receiving sensitivity: - 97 DBM ± 2 dBm Power amplifier output power: 3w4 Ω

PCB size: 66.5 * 33.5mm

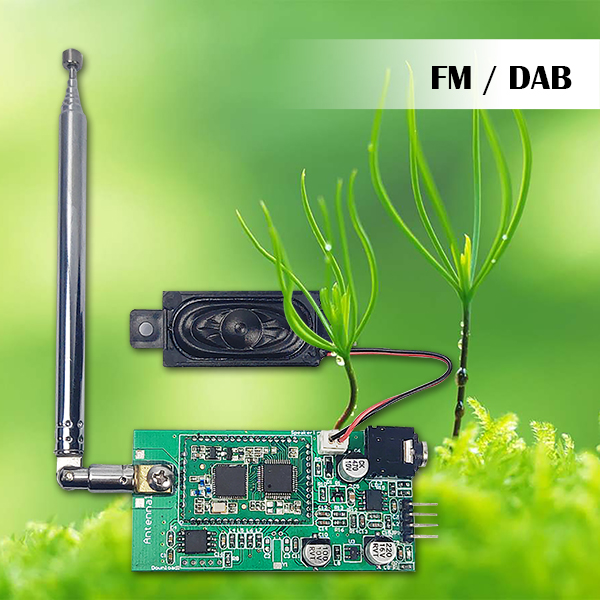

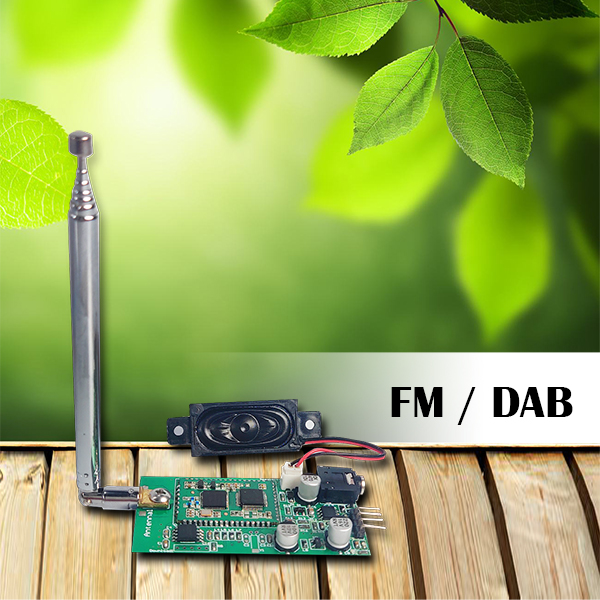

Physical display

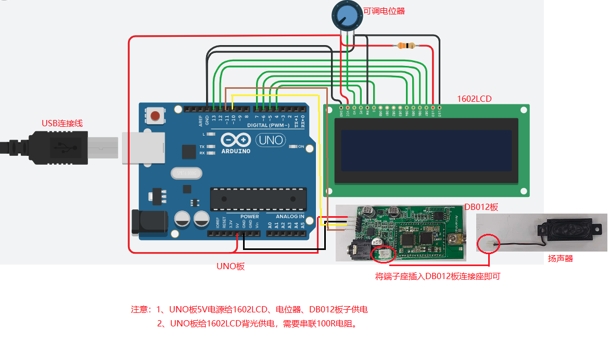

Wiring application diagram

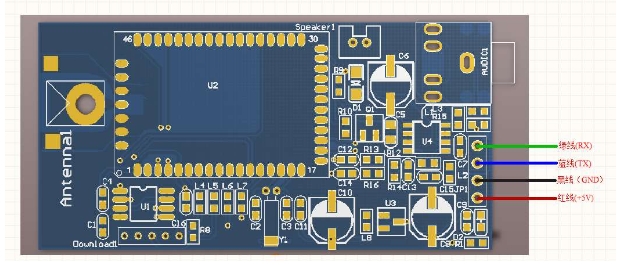

Wiring application diagram

1. Db012r board contains (power interface, speaker socket and 3.5mm headphone port)

2. FM / DAB radio can be received
